We developed a custom wall-mounted bottle opener for a Netherlands-based client Heineken in the beverage industry, based on a provided 3D logo design. The product was manufactured using zinc alloy die casting, followed by polishing, electroplating, assembly, and packaging.
Project Requirement
The design featured a raised 3D logo integrated into a non-flat surface structure. The key requirement was to ensure:
- Accurate logo geometry reproduction
- Clean visual appearance after electroplating
- Stable wall-mounted functionality
Sampling & Engineering Adjustment
During initial sampling, we identified a visual variation on the embossed logo area caused by light reflection on curved surfaces after electroplating.
This is a known factor in zinc alloy die casting when converting 3D logo artwork into production tooling.
We coordinated with the tooling team and carried out standard mold adjustments and re-sampling. After refinement, the revised sample met the required visual and structural standards and was approved by the client for production.
HEINEKEN product — color logo.
Production Process
After sample approval, mass production included:
Zinc Alloy Die Casting
Surface Polishing
Electroplating
Assembly of Wall-Mounted Structure
Packaging
During production, the client requested minor modifications:
Both changes were implemented accordingly.
HEINEKEN product — no color logo.
Quality Control & Production Management
During tooling adjustment and early production trials, we followed standard die casting quality control procedures to ensure stable output, including monitoring of:
All issues identified during trial production were resolved before mass production release.
Result
The final product met all functional and visual requirements, including:
- Consistent embossed logo clarity
- Stable electroplated surface finish
- Secure wall-mounted structure
- Customized packaging requirements

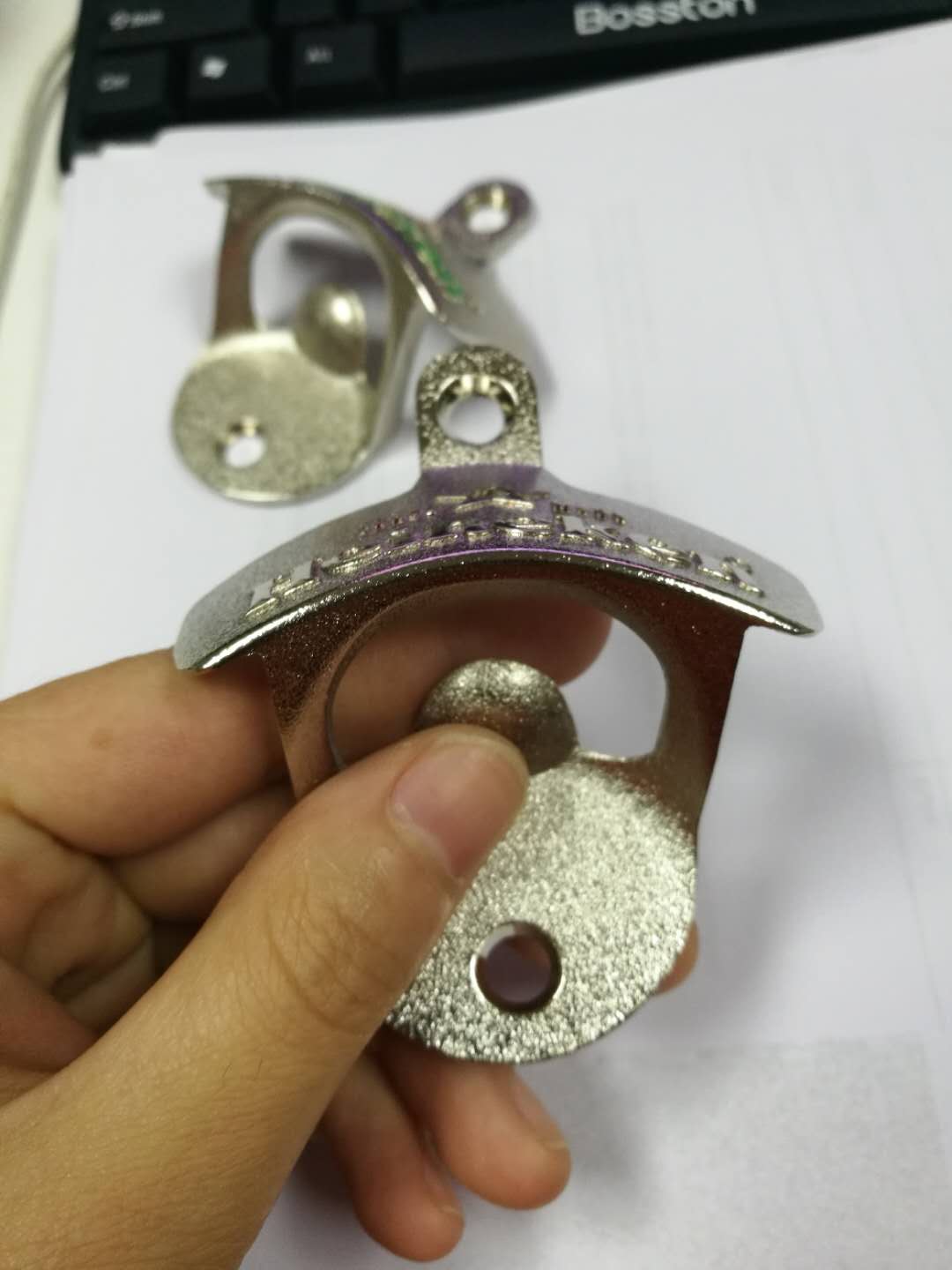

HEINEKEN product — color logo & no color logo, side by side.
HEINEKEN wall-mounted bottle opener — additional product view.
The client approved full-scale production after sample validation.
Key Capabilities Demonstrated
- Zinc alloy die casting OEM development
- 3D logo-to-tooling conversion
- Sampling-based mold refinement
- OEM change management during production
- Stable mass production control for branded products
